LMV324M TSSOP14 Integrated Circuit New And Original

Brand Name : TI

Model Number : LMV324M

Place of Origin : original

MOQ : 1pcs

Supply Ability : 17670pcs

Delivery Time : 3

Packaging Details : 2500

quality： : Brand new unused

Package / box : TSSOP14

Stock : 8000+

Price : Negotiate

Contact Now

ISO9001.pdf

LMV324M is a low-voltage differential operational amplifier with four independent operational amplifiers. It is suitable for single power supply systems and can operate at power voltages ranging from 2.7V to 5.5V. LMV324M has the characteristics of low power consumption, low input bias current, low noise, low input offset voltage and high Gain–bandwidth product, and is widely used in power management, battery power supply, signal conditioning, filtering, instrument amplifier and other fields.
Main parameters of LMV324M:
Power supply voltage range: 2.7V to 5.5V
Working temperature range: -40 ℃ to+125 ℃
Packaging type: SOIC, MSOP, TSSOP
Low input bias current: 10nA
Low input offset voltage: 3mV
High Gain–bandwidth product: 1MHz
Low power consumption: 0.65mA/amplifier
Open circuit gain: 100dB
Input voltage range: -0.3V to Vcc+0.3V
Overload protection: ± 16V
Current output: 25mA
Application of LMV324M:
Power management
Battery powered
Signal conditioning
wave filtering
Instrument amplifier
temperature measurement
Optical detection
Touch control
Audio amplifier
Sensor interface.

Product Technical Specifications

EU RoHS	Not Compliant聽
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Low Voltage Amplifier
Manufacturer Type	Low Voltage Amplifier
Number of Channels per Chip	4
Rail to Rail	Rail to Rail Output
Process Technology	BiCMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	7@5V
Minimum Single Supply Voltage (V)	2.7
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.05@5V
Typical Input Bias Current (uA)	0.015@5V
Maximum Input Bias Current (uA)	0.25@5V
Maximum Supply Current (mA)	0.83@5V
Typical Output Current (mA)	60
Power Supply Type	Single
Typical Slew Rate (V/us)	1@5V
Typical Input Noise Voltage Density (nV/rtHz)	39@5V
Typical Voltage Gain (dB)	100
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.21@5V
Minimum PSRR (dB)	50
Minimum CMRR (dB)	50
Minimum CMRR Range (dB)	50 to 60
Typical Gain Bandwidth Product (MHz)	1
Shut Down Support	No
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Supplier Temperature Grade	Industrial
Packaging	Tube
Mounting	Surface Mount
Package Height	1.5(Max)
Package Width	4(Max)
Package Length	8.75(Max)
PCB changed	14
Standard Package Name	SO
Supplier Package	SOIC
Pin Count	14
Lead Shape	Gull-wing

China LMV324M TSSOP14 Integrated Circuit New And Original wholesale

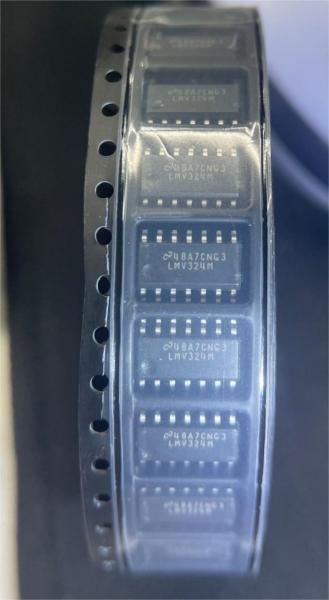

LMV324M TSSOP14 Integrated Circuit New And Original Images
