OPA2277UA SOP8 Integrated Circuit New And Original

Brand Name : TI

Model Number : OPA2277UA

Place of Origin : original

MOQ : 1pcs

Supply Ability : 27030pcs

Delivery Time : 3

Packaging Details : 2500

quality： : Brand new unused

Package / box : SOP8

Stock : 8000+

Price : Negotiate

Contact Now

ISO9001.pdf

The configuration of this general purpose amplifier OPA2277UA OP amp allows it to take on a variety of different behaviors and characteristics with external components such as resistors, capacitors and inductors. Its typical dual supply voltage is ±3|±5|±9|±12|±15 V, with a minimum of ±2 V and maximum of ±18 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 channels per chip. This device is made with bipolar technology. This device uses dual power supplies.

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Low Offset Voltage Amplifier
Manufacturer Type	Low Offset Voltage Amplifier
Number of Channels per Chip	2
Maximum Input Offset Voltage (mV)	0.05@±15V
Minimum Single Supply Voltage (V)	4
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±2
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.0028@±15V
Maximum Input Bias Current (uA)	0.0028@±15V
Maximum Quiescent Current (mA)	1.65@±15V
Power Supply Type	Single\|Dual
Typical Slew Rate (V/us)	0.8@±15V
Typical Input Noise Voltage Density (nV/rtHz)	12@±15V
Typical Voltage Gain (dB)	140
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.2@±15V
Minimum CMRR (dB)	115
Minimum CMRR Range (dB)	>=115
Typical Gain Bandwidth Product (MHz)	1
Typical Settling Time (ns)	16000
Shut Down Support	No
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Packaging	Tube
Mounting	Surface Mount
Package Height	1.5(Max)
Package Width	3.98(Max)
Package Length	5(Max)
PCB changed	8
Standard Package Name	SO
Supplier Package	SOIC
Pin Count	8
Lead Shape	Gull-wing

Product Tags:

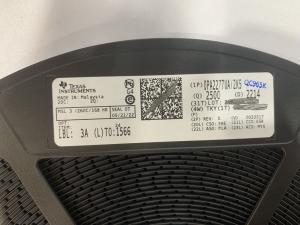

OPA2277UA SOP8 Integrated Circuit New And Original Images
