IPD100N04S402ATMA1 Integrated Power Ic TO-252

Name: IPD100N04S402ATMA1 Integrated Power Ic TO252
Brand: INFINEON
Price: 1 USD

Brand Name : INFINEON

Model Number : IPD100N04S402ATMA1

Place of Origin : original

MOQ : 1pcs

Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 97830pcs

Delivery Time : 3

Packaging Details : 4000

Stock : 8000+

Price : Negotiate

quality： : Brand new unused

Package / box : TO-252

Contact Now

ISO9001.pdf

Application:
IPD100N04S402ATMA1 is an N-channel MOSFET transistor commonly used in fields such as DC power switches, motor control, lighting control, and electronic transformers.
Conclusion:
IPD100N04S402ATMA1 has the characteristics of low conduction resistance, high switching speed, low threshold voltage, and high temperature working ability, which can improve system efficiency and reliability.
Parameters:
Drain Source Voltage (Vdss): 40V
Continuous Drain Current (Id): 90A
Drain Source On Resistance (Rds On): 3.7m Ω
Gate Threshold Voltage (Vgs th): 2.5V
Maximum Operating Temperature (Tj max): 175 ℃
Package: TO-252 (DPAK)

Product Technical Specifications

EU RoHS	Compliant with Exemption聽
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single
Process Technology	OptiMOS-T2
Channel Mode	Enhancement
Channel Type	N
Number of Elements per Chip	1
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	卤20
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	100
Maximum Drain Source Resistance (MOhm)	2@10V
Typical Gate Charge @ Vgs (nC)	91@10V
Typical Gate Charge @ 10V (nC)	91
Typical Input Capacitance @ Vds (pF)	7250@25V
Maximum Power Dissipation (mW)	150000
Typical Fall Time (ns)	24
Typical Rise Time (ns)	12
Typical Turn-Off Delay Time (ns)	26
Typical Turn-On Delay Time (ns)	23
Minimum Operating Temperature (掳C)	-55
Maximum Operating Temperature (掳C)	175
Supplier Temperature Grade	Automotive
Packaging	Tape and Reel
Maximum Pulsed Drain Current @ TC=25掳C (A)	400
Mounting	Surface Mount
Package Height	2.3
Package Width	6.22
Package Length	6.5
PCB changed	2
Tab	Tab
Standard Package Name	TO-252
Supplier Package	DPAK
Pin Count	3

Product Tags:

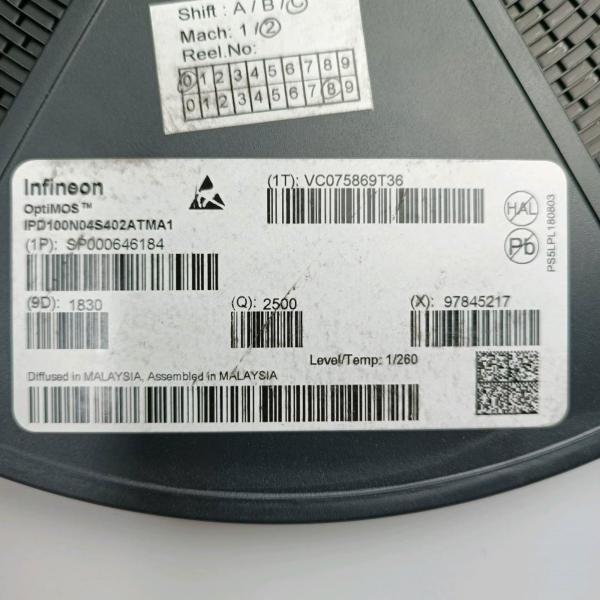

IPD100N04S402ATMA1 Integrated Power Ic TO-252 Images
